Characteristics
Realm is a high-output commercial lighting series developed by Yuanfeng for high-ceiling spaces, commercial atriums, exhibition halls, hotel lobbies, and flagship retail stores.
To address common issues such as beam cut-off, optical deviation, and output loss when high-power luminaires are aimed at large angles, Realm rethinks spotlight adjustment from the rotating structure itself.
Unlike the conventional two-point coaxial fixed structure, Realm adopts a sliding-rail rotation system. Instead of rotating around a single fixed axis, the luminaire moves steadily along a precisely engineered path, maintaining the correct geometric relationship between the light source, optical system, and cut-off structure throughout the adjustment process.
As a result, even under high-output, wide-aiming, and long-distance projection conditions, Realm effectively reduces beam cut-off and optical deviation while maintaining stable, uniform, and predictable beam performance.
What truly matters is not simply greater power or a wider aiming angle, but ensuring that the light still reaches its target precisely after every adjustment.

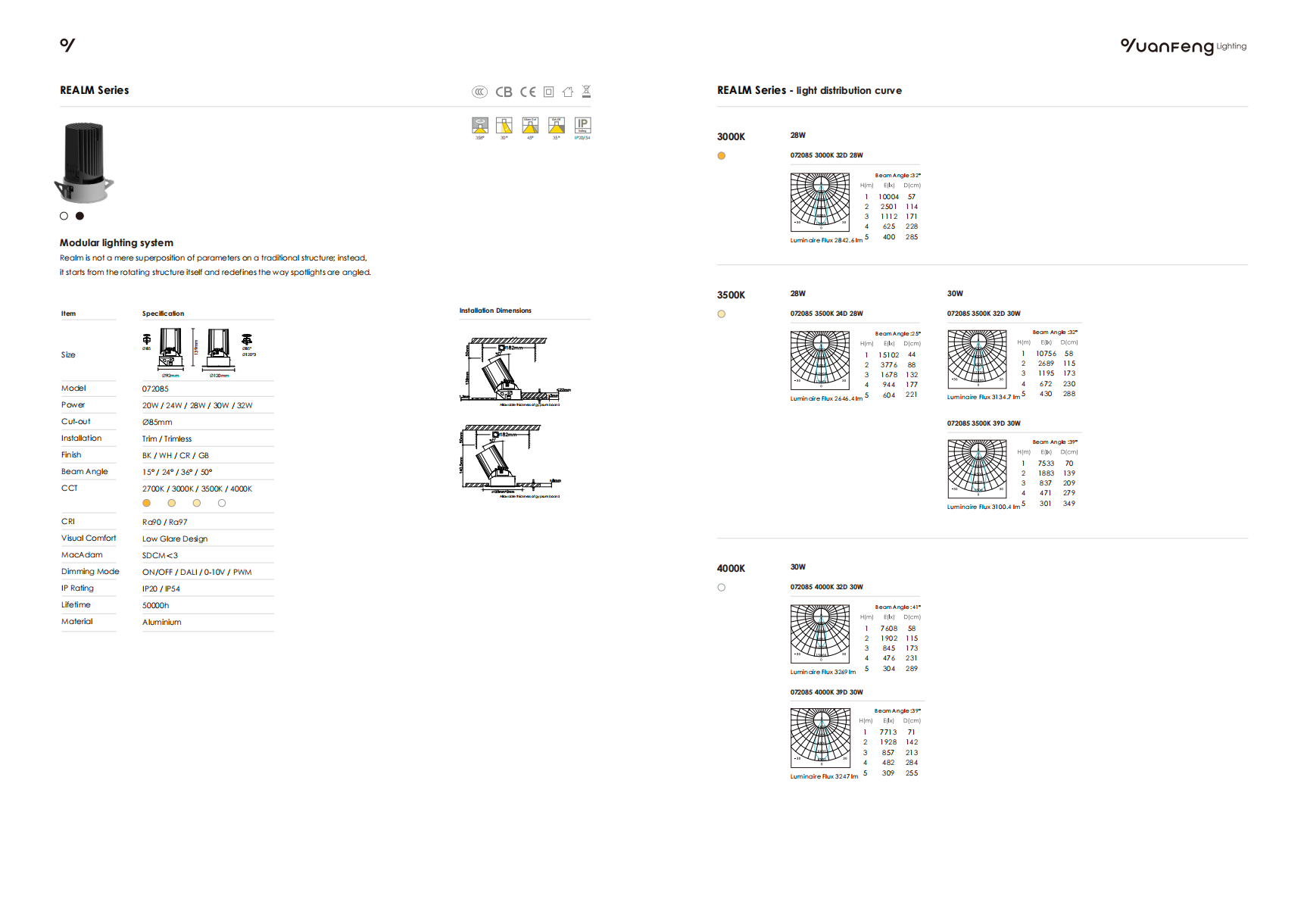

Parameters
| Model | 072085 |
| Power | 20W / 24W / 28W / 30W / 32W |
| Cut-out | Ø85mm |
| Installation | Trim / Trimless |
| Finish | BK / WH / CR / GB |
| Beam Angle | 15° / 24° / 36° / 50° |
| CCT | 2700K / 3000K / 3500K / 4000K |
| CRI | Ra90 / Ra97 |
| Visual Comfort | Low Glare Design |
| MacAdam | SDCM＜3 |
| Dimming | ON/OFF / DALI / 0-10V / PWM |
| IP Rating | IP20 / IP54 |
| Lifetime | 50000h |
| Material | Aluminium |
