Characteristics

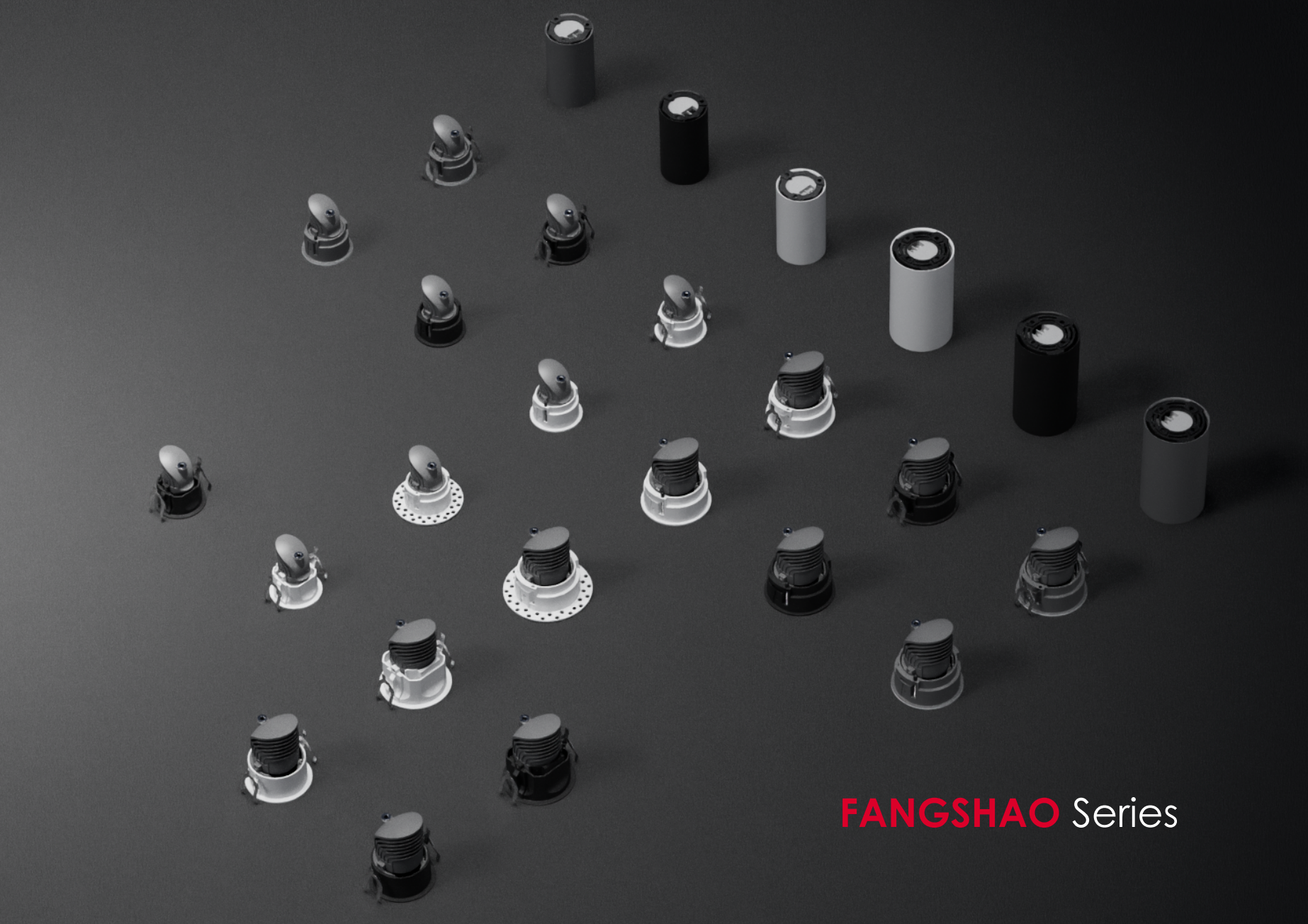

Fangshao
A Structural Approach to Lighting
FS is a modular lighting system engineered for contemporary architectural spaces.
Built on a unified structural platform, the system delivers long-term adaptability, simplified maintenance, and flexible configuration across diverse applications.
Its integrated slim-profile design combined with a precision mechanical locking structure ensures clean spatial expression and reliable structural stability.
Customizable optical modules enable precise atmosphere control, allowing the lighting experience to adapt naturally to different spatial needs.
Parameters
| Model | 063055 | Model | 063065 | Model | 063075 |
| Power | 5W / 7W | Power | 9W / 10W / 12W | Power | 9W / 10W / 12W |
| Cut-out | Ø55mm | Cut-out | Ø65mm | Cut-out | Ø75mm |
| Installation | Trim / Trimless | Installation | Trim | Installation | Trim / Trimless |
| Finish | BK / WH / CR / GB | Finish | BK / WH / CR / GB | Finish | BK / WH / CR / GB |
| Beam Angle | 5° / 15° / 24° / 36° | Beam Angle | 3° / 10° / 15° / 24° / 36° / 50° | Beam Angle | 3° / 10° / 15° / 24° / 36° / 50° |
| CCT | 2700K / 3000K / 3500K / 4000K | CCT | 2700K / 3000K / 3500K / 4000K | CCT | 2700K / 3000K / 3500K / 4000K |
| CRI | Ra90 / Ra97 | CRI | Ra90 / Ra97 | CRI | Ra90 / Ra97 |
| Visual Comfort | Low Glare Design | Visual Comfort | Low Glare Design | Visual Comfort | Low Glare Design |
| MacAdam | SDCM＜3 | MacAdam | SDCM＜3 | MacAdam | SDCM＜3 |
| Dimming | ON/OFF / DALI / 0-10V / PWM | Dimming | ON/OFF / DALI / 0-10V / PWM | Dimming | ON/OFF / DALI / 0-10V / PWM |
| IP Rating | IP20 / IP54 | IP Rating | IP20 / IP54 | IP Rating | IP20 / IP54 |
| Lifetime | 50000h | Lifetime | 50000h | Lifetime | 50000h |
| Material | Aluminium | Material | Aluminium | Material | Aluminium |
