Characteristics

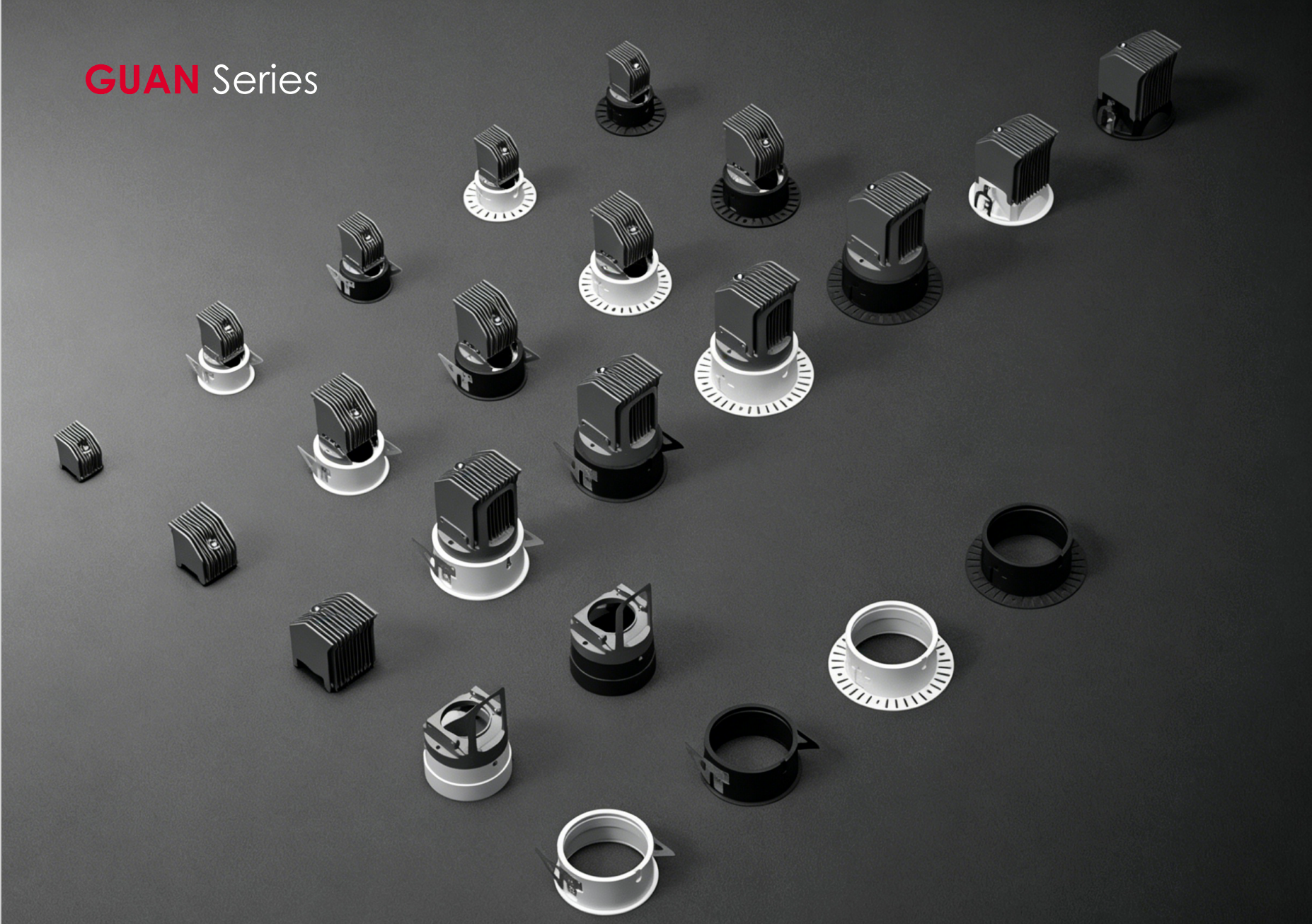

The GUAN Series is a modular lighting system designed to bring greater spatial freedom and visual order through light.
Its integrated optical and structural architecture balances visual comfort, thermal stability, and precise optical performance within a refined minimal form.
Featuring a 50–55° cut-off angle for enhanced glare control and a 35–45° aiming range for flexible beam orientation, the system adapts naturally to diverse spatial and display applications.
Designed for retail, gallery, and contemporary architectural environments.
Parameters
| Model | 073055 | Model | 073075 | Model | DS073085 |
| Power | 5W / 7W / 9W | Power | 9W / 10W / 12W / 15W | Power | 18W / 20W / 24W |
| Cut-out | Ø55mm | Cut-out | Ø75mm | Cut-out | Ø85mm |
| Installation | Trim / Trimless | Installation | Trim / Trimless | Installation | Trim |
| Finish | BK / WH | Finish | BK / WH | Finish | BK / WH |
| Beam Angle | 5° / 15° / 24° / 36° | Beam Angle | 3° / 10° / 15° / 24° / 36° / 50° | Beam Angle | 15° / 24° / 36° / 50° |
| CCT | 2700K / 3000K / 3500K / 4000K | CCT | 2700K / 3000K / 3500K / 4000K | CCT | 2700K / 3000K / 3500K / 4000K |
| CRI | Ra90 / Ra97 | CRI | Ra90 / Ra97 | CRI | Ra90 / Ra97 |
| Visual Comfort | Low Glare Design | Visual Comfort | Low Glare Design | Visual Comfort | Low Glare Design |
| MacAdam | SDCM＜3 | MacAdam | SDCM＜3 | MacAdam | SDCM＜3 |
| Dimming | ON/OFF / DALI / 0-10V / PWM | Dimming | ON/OFF / DALI / 0-10V / PWM | Dimming | ON/OFF / DALI / 0-10V / PWM |
| IP Rating | IP20 / IP54 | IP Rating | IP20 / IP54 | IP Rating | IP20 / IP54 |
| Lifetime | 50000h | Lifetime | 50000h | Lifetime | 50000h |
| Material | Aluminium | Material | Aluminium | Material | Aluminium |
